Customized MHC Alloy Parts

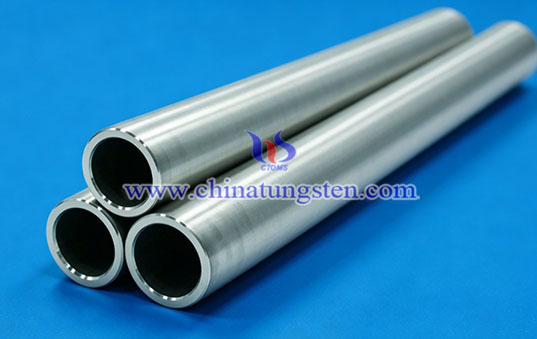

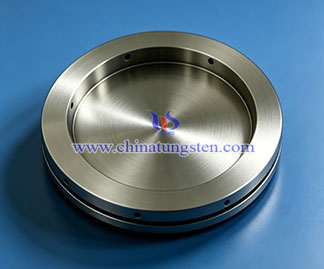

Customized MHC Alloy Parts Picture
Customized MHC Alloy Parts Picture Inquiry & Feedback

1. What’s Customized MHC Alloy Parts?
Customized MHC alloy parts (Customized Molybdenum Hafnium Carbon Alloy Parts) are high-performance molybdenum-based high-temperature structural components manufactured using high-purity molybdenum as the matrix with additions of hafnium (Hf) and carbon (C) through powder metallurgy.

2. Advantages of CTIA’s Customized MHC Alloy Parts
(1) HfC dispersion-strengthened structure enhances high-temperature strength and creep resistance, maintaining stable load-bearing performance above 1000°C.
(2) Recrystallization temperature above 1500°C ensures that the microstructure is resistant to coarsening during long-term high-temperature service.
(3) High melting point (2620°C) and low vapor pressure traits make them suitable for high-vacuum and intense thermal field environments.
(4) High thermal conductivity (120–150 W/(m·K)) combined with low coefficient of thermal expansion effectively improves thermal stability and thermal shock resistance.
(5) Complex geometric structures can be achieved through precision machining to meet non-standard design and assembly requirements.

3. Applications of CTIA’s Customized MHC Alloy Parts
(1) Thermal field structural components, supports, and sealing transitions for semiconductor equipment.
(2) Internal load-bearing structures, connectors, and insulation assemblies for high-temperature vacuum furnaces.
(3) High-temperature guidance and positioning components in electron beam and ion beam equipment.
(4) Aerospace hot-end structural components and high-temperature joint transition structures.
(5) Customized thermal field and vacuum structural assemblies in high-end scientific research apparatus.
(6) High-temperature resistant mold structures and functional parts in metal hot-working equipment.

4. Specifications of CTIA’s Customized MHC Alloy Parts
Shape: rings, flanges, sleeves, customized shapes, customized.
Size: Customized according to drawings or working conditions.
Surface Finish: ground/polished.

Backed by nearly 30 years of expertise in molybdenum and molybdenum alloy manufacturing, CTIA combines powder metallurgy material design with precision high-temperature machining to optimize grain structure, material density, and dimensional accuracy. CTIA supplies MHC alloy plates, sheets, rods, round bars, discs, tubes, rings, electrodes, and customized parts, ensuring excellent structural consistency and reliable performance for complex operating conditions and non-standard design requirements while meeting the stringent material stability demands of high-end thermal equipment under extreme temperatures and long-term service conditions.

 

For any inquiry, please contact molybdenum and molybdenum alloy manufacturer: CTIA GROUP

Email: sales@chinatungsten.com

Tel: 0086 592 5129696 / 0086 592 5129595

Website: www.molybdenum.com.cn

WeChat:

Business Wechat of CTIA GROUP
