MHC Alloy Sheet

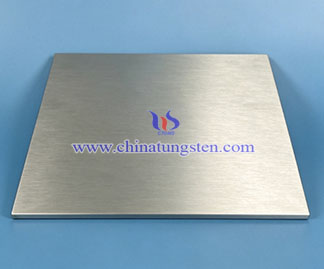

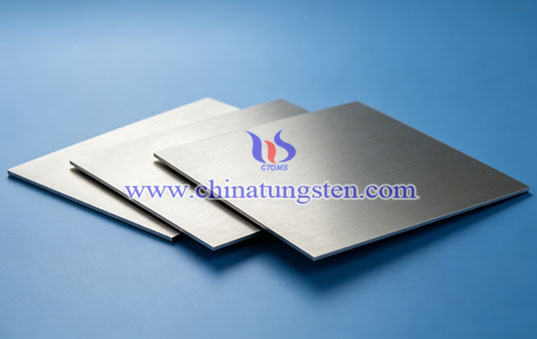

MHC Alloy Sheet Picture
MHC Alloy Sheet Picture Inquiry & Feedback

1.What's MHC Alloy Sheet?
MHC alloy sheet (Molybdenum Hafnium Carbon Alloy Sheet) is a high-performance molybdenum-based high-temperature alloy sheet material using high-purity molybdenum as the matrix, with precise addition of hafnium (Hf) and carbon (C) elements. Fine HfC dispersion strengthening phases are formed in situ through high-temperature vacuum processing. It combines the inherent advantages of molybdenum with particle strengthening mechanisms, delivering excellent comprehensive high-temperature performance.

2. Features of CTIA's MHC Alloy Sheet
(1) High-Temperature Strength
Strength reaches approximately 800 MPa at room temperature and maintains about 500 MPa even in 1000°C even in a high-temperature environment of 1000°C, meeting complex high-temperature structural demands.
(2) Creep Resistance
Relies on the dispersion strengthening effect of HfC particles to effectively prevent deformation and dislocation movement at high temperatures.
(3) Microstructural Stability
Recrystallization temperature above 1500°C, with well-suppressed grain growth during high-temperature use.
(4) Thermophysical Properties
Melting point approximately 2620°C, combining high thermal conductivity and low expansion coefficient with strong thermal shock resistance.
(5) Processing Adaptability
Easy to perform turning, milling, drilling, grinding, and stamping for precision machining, suitable for manufacturing complex components.

3. Applications of CTIA's MHC Alloy Sheet
(1) High-Temperature Structural Parts: Used in vacuum furnace heat shield systems and insulation assemblies.
(2) Semiconductor and Vacuum Equipment: Used for thermal field liners, support sheets, and functional structural parts.
(3) Electron Beam and Coating Systems: Used for key components in electron beam evaporation and vacuum deposition.
(4) High-Temperature Precision Structural Parts: Used for lightweight hot-end structures in aerospace and high-end equipment.

4. Specifications of CTIA's MHC Alloy Sheet
Thickness: 0.5–10 mm, customizable
Width: ≤500 mm, customizable
Length: 200–2000 mm, customizable

With nearly 30 years of expertise in molybdenum and molybdenum alloy manufacturing, CTIA provides stable and reliable MHC alloy products including plates, sheets, rods and customized parts for vacuum thermal equipment, semiconductor systems, and advanced industrial structural components.

CTIA’s MHC alloy sheet is optimized by rolling and vacuum heat treatment, enabling precise control of grain structure. It maintains excellent high-temperature stability and mechanical performance in thin sections. Due to HfC dispersion strengthening, MHC alloy shows strong creep resistance and structural reliability under extreme thermal conditions.

 

For any inquiry, please contact molybdenum and molybdenum alloy manufacturer: CTIA GROUP

Email: sales@chinatungsten.com

Tel: 0086 592 5129696 / 0086 592 5129595

Website: www.molybdenum.com.cn

WeChat:

Business Wechat of CTIA GROUP
