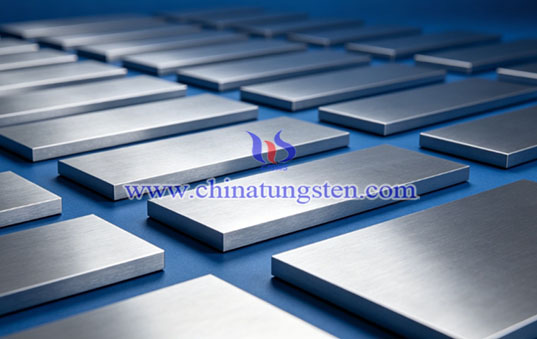

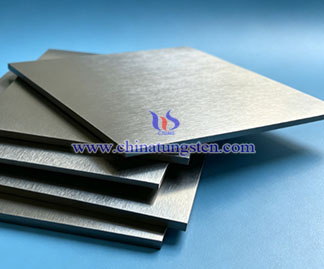

MHC Alloy Plate

1.What’s MHC Alloy Plate?
MHC alloy plate (Molybdenum Hafnium Carbon Alloy Plate), is a molybdenum-based high-temperature structural material with high-purity molybdenum (Mo ≥98.5%) as the matrix. It is strengthened by the in-situ formation of HfC dispersion phases through the addition of hafnium (Hf: 1.0%–1.2%) and carbon (C: 0.05%–0.15%) under vacuum high-temperature conditions.

2.Characteristics of CTIA’s MHC Alloy Plate
(1) High-temperature strength: ~800 MPa at room temperature and ~500 MPa at 1000°C, suitable for high-temperature load-bearing structures.
(2) Creep resistance: HfC dispersion strengthening effectively suppresses high-temperature deformation and dislocation slip.
(3) Structural stability: recrystallization temperature >1500°C, grain growth is effectively inhibited at high temperatures.
(4) Thermal properties: melting point ~2620°C, high thermal conductivity, low thermal expansion, and strong thermal shock resistance.
(5) Machinability: suitable for turning, milling, drilling, and grinding, enabling precision manufacturing applications.

3.Applications of CTIA’s MHC Alloy Plate
CTIA’s MHC alloy plate can be used in vacuum furnace hot-zone systems, including support plates, heating-zone structural parts, and load-bearing components. In high-temperature thermal processing, it is used for die bases and hot-forming tooling. In advanced equipment fields, it is applied in electron beam evaporation systems, X-ray rotating anode target substrates, and vacuum deposition system components. It is also used in aerospace high-temperature structural parts and extreme thermal load-bearing structures.

4.Specifications of CTIA’s MHC Alloy Plate
Thickness: 10–50 mm, customizable
Width: ≤500 mm, customizable
Length: 300–2000 mm, customizable

After rolling and heat treatment optimization, CTIA’s MHC alloy plate achieves controlled grain orientation and improved density, meeting different structural and engineering requirements. With HfC dispersion strengthening, excellent high-temperature strength retention, and superior microstructural stability, MHC alloy plate delivers reliable performance under extreme thermal conditions. With nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, CTIA provides stable MHC alloy plates, rods, tubes, rings, discs, and customized components for vacuum equipment, thermal processing dies, and advanced industrial structural applications.
