MHC Alloy Disc

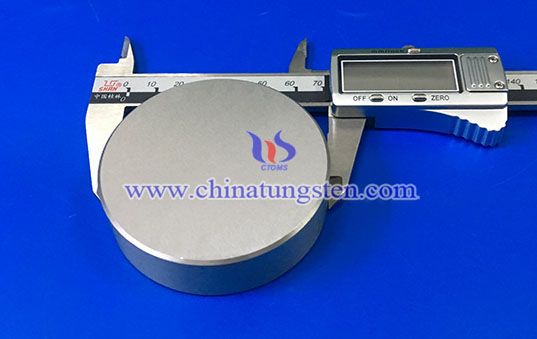

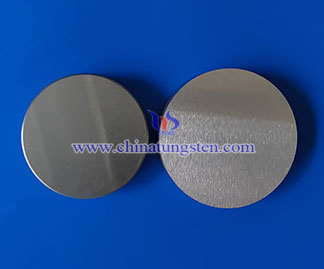

MHC Alloy Disc Picture
MHC Alloy Disc Picture Inquiry & Feedback

1. What’s MHC Alloy Disc?
MHC alloy disc (Molybdenum Hafnium Carbon Alloy Disc) is a high-performance disc-shaped material made with high-purity molybdenum as the matrix, incorporating hafnium and carbon elements through powder metallurgy technology. It forms HfC dispersion strengthening phases internally, effectively enhancing high-temperature strength, creep resistance, and microstructural stability. It also features high melting point, low vapor pressure, and excellent thermal shock resistance, making it suitable for extreme conditions such as semiconductors, vacuum thermal fields, and high-temperature structural load-bearing applications.

2. Advantages of CTIA's MHC Alloy Disc
(1) High High-Temperature Strength: Room temperature ≈800 MPa, maintains high strength levels at 1000°C.
(2) Good Microstructural Stability: Recrystallization temperature above 1500°C, with minimal grain growth at high temperatures.
(3) Strong Creep Resistance: HfC particles effectively hinder dislocation movement and improve high-temperature deformation resistance.
(4) Excellent Thermal Properties: Melting point of 2620°C, low thermal expansion coefficient, and outstanding thermal shock resistance.
(5) Good Machinability: Suitable for precision stamping, turning, and grinding to meet complex forming requirements.

3. Preparation of CTIA's MHC Alloy Disc
High-purity molybdenum powder (Mo ≥98.5%) is uniformly mixed with hafnium sources (Hf: 1.0%–1.2%) and carbon sources (C: 0.05%–0.15%). After pressing and high-temperature sintering, HfC dispersion phases are formed in situ during heat treatment. Rolling and shaping processes are then applied to obtain a dense and uniform disc microstructure.

4. Applications of CTIA's MHC Alloy Disc
MHC alloy discs are widely used in vacuum furnace heating assemblies, structural components for electron beam and ion beam equipment, thermal field insulation and support parts, high-temperature mold gaskets, and aerospace hot-end load-bearing structures.

5. Specifications of CTIA's MHC Alloy Disc
Diameter: 10–300 mm, customizable
Thickness: 0.5–50 mm, customizable
Surface Condition: Turned, ground, polished, etc.

With nearly 30 years of expertise in molybdenum and molybdenum alloy manufacturing, CTIA optimizes powder metallurgy, extrusion/drawing, and heat treatment processes to precisely control dimensional uniformity, grain structure, and densification. MHC alloy products are available in forms including plates, sheets, rods, round bars, discs, rings, tubes, and customized components. Based on the HfC dispersion-strengthening mechanism, CTIA’s MHC alloy disc delivers excellent high-temperature strength and structural stability, ensuring reliable performance under extreme thermal conditions.

 

For any inquiry, please contact molybdenum and molybdenum alloy manufacturer: CTIA GROUP

Email: sales@chinatungsten.com

Tel: 0086 592 5129696 / 0086 592 5129595

Website: www.molybdenum.com.cn

WeChat:

Business Wechat of CTIA GROUP
