MHC Alloy in Aerospace Structural Components

MHC alloy (Molybdenum Hafnium Carbon Alloy) is high-performance molybdenum-based dispersion-strengthened alloy composed of high-purity molybdenum matrix (Mo ≥98.5%) with small additions of hafnium (Hf: 1.0%–1.2%) and carbon (C: 0.05%–0.15%). Aerospace hot-end structural components operate for extended periods at temperatures above 1000°C while being exposed to severe thermal cycling, high heat flux, and complex thermal stresses, placing stringent requirements on high-temperature strength retention, thermal fatigue resistance, creep resistance, and microstructural stability.

MHC alloy is produced using powder metallurgy and contains uniformly distributed nano- to submicron-sized HfC dispersion-strengthening particles formed in situ within the molybdenum matrix. This microstructure increases the recrystallization temperature to above 1500°C while providing the melting point of approximately 2620°C, relatively high thermal conductivity, excellent high-temperature strength, and long-term microstructural stability. These properties make MHC alloy well suited for aerospace high-temperature load-bearing structures, thermal protection structures, and other critical high-temperature components.

1. Why Choose MHC Alloy for Aerospace Structural Components?
CTIA’s MHC alloy provides the following advantages to meet the demanding requirements of aerospace high-temperature structural components:
(1) Excellent High-Temperature Strength Retention
Maintains excellent mechanical properties above 1000°C, meeting the long-term load-bearing requirements of aerospace hot-end structures.
(2) Outstanding Thermal Fatigue Resistance
Performs reliably during repeated thermal cycling, reducing the risk of thermal fatigue cracking and improving the reliability of critical structural components.
(3) Excellent Creep Resistance
The HfC dispersion-strengthened structure effectively suppresses dislocation movement and grain boundary migration, minimizing deformation during prolonged high-temperature service.
(4) Outstanding Microstructural Stability
With recrystallization temperature above 1500°C, grain coarsening is effectively suppressed during long-term high-temperature exposure, helping maintain dimensional accuracy and assembly stability.
(5) Excellent Thermal Management Performance
The combination of relatively high thermal conductivity and low coefficient of thermal expansion reduces thermal stress and improves the thermal shock resistance of thermal protection structures.

2. Applications of CTIA's MHC Alloy in Aerospace Structural Components
CTIA’s MHC alloy can be used in: (1) high-temperature support structures and high-temperature connectors for aerospace engines; (2) thermal shielding structures and hot-zone structural components for aerospace propulsion systems; (3) thermal protection structures and load-bearing components for hypersonic vehicles; (4) hot-zone structures and fixtures for aerospace high-temperature testing equipment; and (5) vacuum high-temperature structural and support components for aerospace research equipment.

3. Specifications of CTIA's MHC Alloy in Aerospace Structural Components

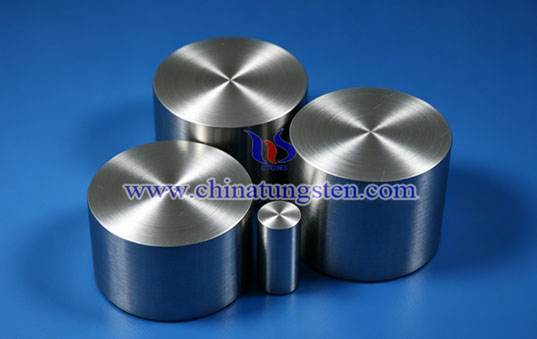

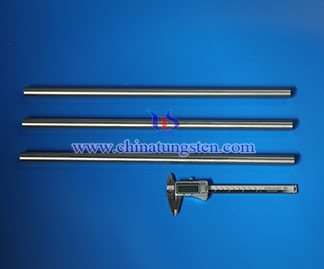

Product Forms: MHC alloy rods, plates, sheets, tubes, rings, customizable
Dimensions: Customizable

With nearly 30 years of experience in molybdenum and molybdenum alloy manufacturing, CTIA has optimized alloy composition design, powder metallurgy processing, high-temperature densification, and precision thermomechanical processing to ensure uniform microstructures, stable performance, and consistent dimensional accuracy. CTIA supplies MHC alloy plates, sheets, rods, discs, tubes, rings, and customized components for aerospace high-temperature support structures, thermal protection structures, hot-zone structures, and other critical applications. These products meet demanding requirements for high-temperature strength retention, thermal fatigue resistance, creep resistance, and long-term service reliability under prolonged high-temperature exposure, severe thermal cycling, and complex thermal stress conditions.
